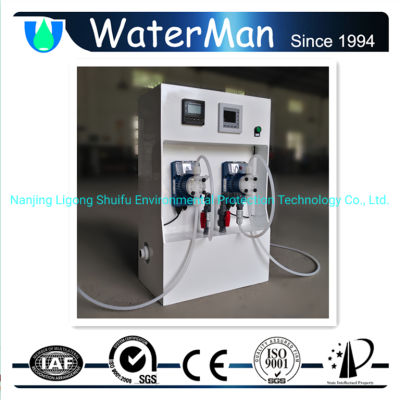

Chlorine Dioxide Generator Small Capacity 50g/H Residual Clo2 Control

Chlorine Dioxide Generator Small Capacity 50g/H Residual Clo2 Control

Quantity:




Inquire Add to Basket

Certification:
ISO9001, CE
Application:
Industry
Voltage:
220V
Disinfection Method:
Chlorine Dioxide
Control Mode:
Manual / Residual Clo2 Auto Control
Transport Package:
Plywood Box

Model NO.:
CPF-50D2X
Specification:
50 grams per hour
Trademark:
Waterman
Origin:
Made in China
HS Code:
8419200000
Production Capacity:
4, 000 PCS/Year
Customization:
Available | Customized Request

Product Description

Chlorine Dioxide Generator Small Capacity 50g/H Residual Clo2 Control
Place of Origin: Jiangsu, China (Mainland)
Model: CPF-50D2X
Capacity: 50 grams per hour
Certification: ISO9001, CE Marked
EINECS No. 233-162-8
CAS NO. 10049-04-4
Control Mode: Manual / linkage / Residual ClO2 auto-control
Installation Method: Wall-mounted or vertical
Power Supply: 220V/50Hz

Chlorine Dioxide Generator Small Capacity 50g/H Residual Clo2 Control

Main parameters:1. Operating voltage: AC220V plus or minus 10%2. Working temperature: -5 ~ 50 degrees Celsius3. Relative humidity: 80%4. Maximum pressure of water-pipe-line: <0.7Mpa5. There should be no strong electromagnetic field interference around the equipment.6. Function: Manual / Linkage / Residual ClO2 auto-control Low liquid level alarm function Timing start / stop function
Alarm remote transfer

5 NaClO₂ + 4HCl = 4ClO₂ + 5NaCl + 2H₂O
NaClO₂: industrial sodium chlorite (purity≥78% ) or liquid
Activator: industrial first grade compound hydrochloric acid (purity≥31%) or other weak acid or strong acid
Two raw chemicals of NaClO₂ and HCl are to be inhaled into the reactor proportionally by two metering pumps, in which produce quantitative high-purity ClO₂ solution, and then to be dosed directly in the water tank or pressured water pipe together with the dilution water.

The highest outlet pressure of ClO₂solution is 0.40Mpa. Raw chemicals conversion rate is higher than 90%. The dosage of ClO₂ can be adjusted manually or automatically by receiving 4-20mA signal sent by residual ClO2 sensor.

Chlorine Dioxide Chlorine Dioxide System Water Treatment Equipment

Our main products are 2-chemical and 3-chemical chlorine dioxide generators; gas chlorine dioxide NOX destruction systems; electrolytic sodium hypochlorite generators, and chemical dosing skids.
